Mastering the Mirror Edge: How an Overflow Swimming Pool is Built in Dubai

There is a distinct reason why overflow swimming pools are the signature choice for luxury villas in elite communities like Dubai Hills Estate and Emirates Hills. Unlike standard skimmer pools, an overflow pool keeps the water level perfectly flush with your deck. This creates a striking, mirror-like surface that transforms your backyard into a five-star private resort.

However, achieving this seamless visual effect requires exceptional hydraulic engineering and civil precision. As a premier swimming pool contractor in Dubai, Lushly Pools delivers a transparent, step-by-step look into the advanced construction process behind a luxury overflow pool.

The Step-by-Step Construction Process

Building a concrete overflow pool is a highly technical sequence. Misordering a single step or miscalculating a line can ruin the perimeter flow. Here is exactly how expert swimming pool builders in Dubai execute the build from the ground up:

1. Excavation & Sub-Base Engineering

Our team excavates your plot to the precise depth and architectural profile. We then pour a PCC (Plain Cement Concrete) blinding layer. This creates a perfectly stable, level foundation that protects the structural shell from shifting soil conditions.

2. Balancing Tank & Pump Room Core

Unlike standard layouts, an overflow pool requires a subterranean balancing tank (surge tank) and an underground pump room. We construct these adjacent structures using concrete hollow blockwork. The balancing tank is vital; it holds the water displaced when guests dive into the pool.

3. Double-Layer Primary Waterproofing

To completely isolate the pool structure from underground water tables and prevent soil moisture from attacking the concrete, we apply two coats of high-grade, torch-on waterproofing membrane across all prepared blockwork.

4. Heavy-Duty Structural Reinforcement

We install two layers of heavy-duty steel reinforcement mesh (BRC B503). This double-layer steel cage provides massive structural load-bearing capacity and minimizes any risk of shrinkage cracks during the concrete application.

5. High-Pressure Guniting

We spray a high-pressure, 200mm-thick gunite concrete mix to form the pool shell, steps, and internal benches. Gunite provides a high-density, low-porosity core. During this phase, we also cast the integrated overflow channels running continuously along the pool’s perimeter.

6. Millimeter-Precision Rendering & Plastering

We apply a 20mm-thick plaster layer over the gunite to create a perfectly smooth surface. This step is hyper-critical for an overflow pool. The lip of the perimeter overflow channel must be leveled with millimeter precision so that the water spills over all edges uniformly without leaving dry patches.

7. Advanced Hydraulic Plumbing Integration

Our MEP engineers install the specialized plumbing infrastructure. This includes casting the drain lines inside the overflow channels, connecting them directly to the balancing tank, and routing the main pressure lines back through the underground filtration pump room.

8. Cementitious Waterproofing Membrane

We apply a flexible, two-component, fiber-reinforced cementitious waterproofing slurry (such as MAPEI or Polybit CR 66). We embed a fiberglass mesh layer directly inside the first coat. This forms a flexible, secondary barrier that seals micro-cracks and ensures 100% watertight integrity.

9. Luxury Mosaic Tiling & Chemical-Resistant Grouting

Our artisans precisely lay your selected luxury glass mosaic tiles using high-polymer, water-resistant adhesives. We finish the installation with an epoxy or specialized premium grout that offers ultimate resistance to pool chemicals, high temperatures, and intense UV exposure.

10. Electrical Hookup & Smart Automation

We route specialized underwater cables through waterproof conduits to power your low-voltage LED lighting system. Finally, we install a dedicated automatic fresh-water filling line directly into the balancing tank to combat desert evaporation and keep your pool perfectly balanced year-round.

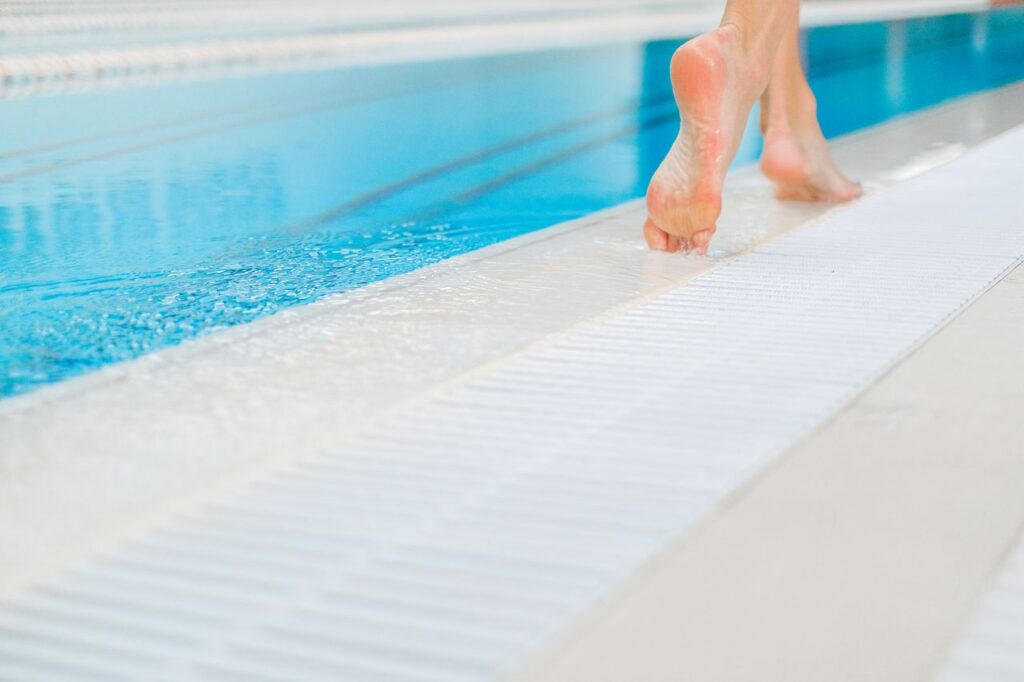

The Balance Tank Secret In an overflow pool, water gravity-drains off the deck into the perimeter channel and flows down into the balancing tank. The pump room then sucks water from the balancing tank, runs it through the filtration and chiller systems, and pushes it back up through nozzles in the pool floor. It is a continuous, beautiful cycle.

Navigating Swimming Pool Construction Costs in Dubai

Investing in an overflow pool involves a higher level of civil work and advanced mechanical components compared to standard pool models. When evaluating your villa pool construction cost, it is important to remember that the inclusion of a balancing tank, perimeter channel grates, and larger filtration pumps will influence the initial setup budget.

Once built, maintaining an overflow system requires specialized attention. Partnering with professional pool maintenance companies in Dubai ensures that surge tank sensors remain clear, perimeter channels stay free of windblown desert dust, and water chemistry remains pristine. Utilizing routine swimming pool cleaning services in Dubai keeps the continuous water loop running smoothly and prevents debris from clogging subterranean pump lines.

However, the payoff is immense. A professionally engineered concrete overflow pool constructed by top swimming pool builders in Dubai significantly increases your luxury villa’s market value and delivers an unmatched aesthetic that defines elite Dubai living.

Partner with the Best Swimming Pool Companies in Dubai

Building a flawless overflow pool demands zero margins for error. At Lushly Pools, we manage the entire project lifecycle, from initial 3D design and developer NOC approvals to precision civil engineering and automated pool handovers.

Ready to transform your backyard into a breathtaking, seamless oasis? Contact our Dubai engineering team today to schedule an on-site consultation and receive an itemized project breakdown.
